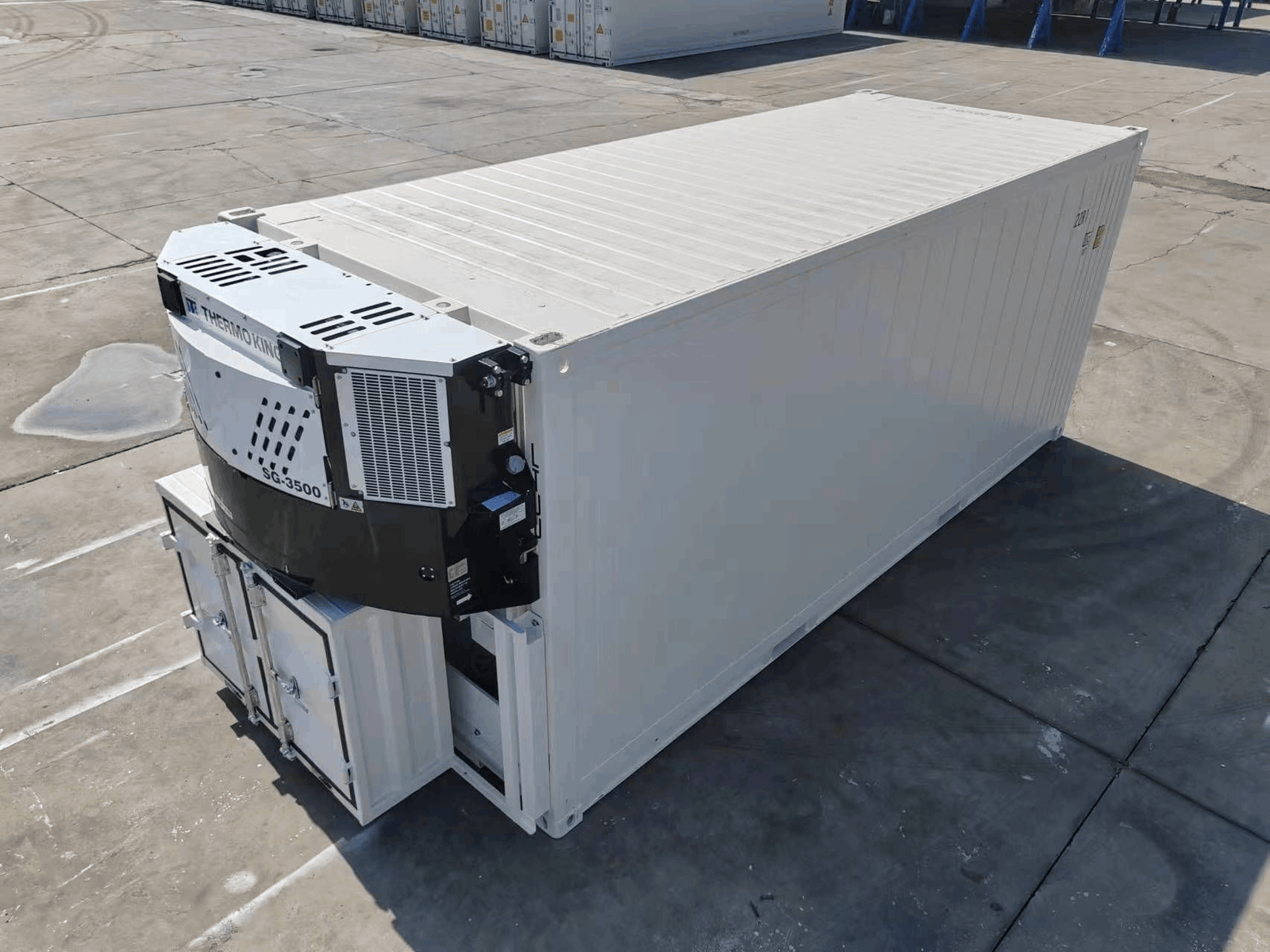

20′ Military-Grade Reefer Container – Electric/Diesel Backup

When temperature-sensitive cargo or equipment needs to remain protected in demanding environments, reliable refrigeration cannot depend on a single power source. The 20′ Military-Grade Reefer Container – Electric/Diesel is designed specifically for situations where temperature control, operational reliability and power redundancy are essential.

This specialized 20-foot refrigerated container combines a fully insulated temperature-controlled interior with an electric refrigeration system and an integrated diesel-powered backup generator. If the main electrical supply becomes unavailable or the refrigeration system experiences a malfunction, the backup system is designed to start automatically, helping maintain continuous operation.

This dual-power configuration makes the unit particularly attractive for military operations, remote deployments, emergency response, international logistics, food and cold-chain applications, pharmaceutical-related logistics, industrial operations and other situations where maintaining controlled temperatures is critical.

Reliable Temperature-Controlled Storage

The container provides a fully insulated, temperature-controlled environment designed to protect temperature-sensitive goods during storage or transportation.

Its insulated construction helps separate the internal environment from external climatic conditions, while the refrigeration system provides active temperature management.

This makes the container suitable for operations where products, materials or equipment must be kept within controlled environmental conditions rather than exposed to normal outdoor temperatures.

Electric Refrigeration with Automatic Diesel Backup

One of the most important features of this reefer container is its dual-power capability.

The primary climate-control system operates using electric power. In the event that electricity is unavailable, or if a malfunction affects the main system, the integrated diesel backup system is designed to start automatically.

The diesel generator is supported by an onboard diesel tank designed for approximately 24 hours of continuous operation.

This automatic backup capability provides an additional level of operational security for temperature-sensitive cargo. Instead of relying entirely on an external electrical supply, the container has an independent backup power source available when required.

Designed for Demanding Environments

The container belongs to MC Containers’ military-grade range, which was developed for demanding military and specialized operational requirements.

The manufacturer states that these units are designed to meet military-grade container standards and can be used in environments such as NATO operations around the world. The reefer is also designed according to relevant ISO container standards and operational climate requirements.

This makes the container suitable for customers who require more than a conventional refrigerated container and need a solution designed around reliability, mobility and demanding operating conditions.

Robust External Equipment Protection

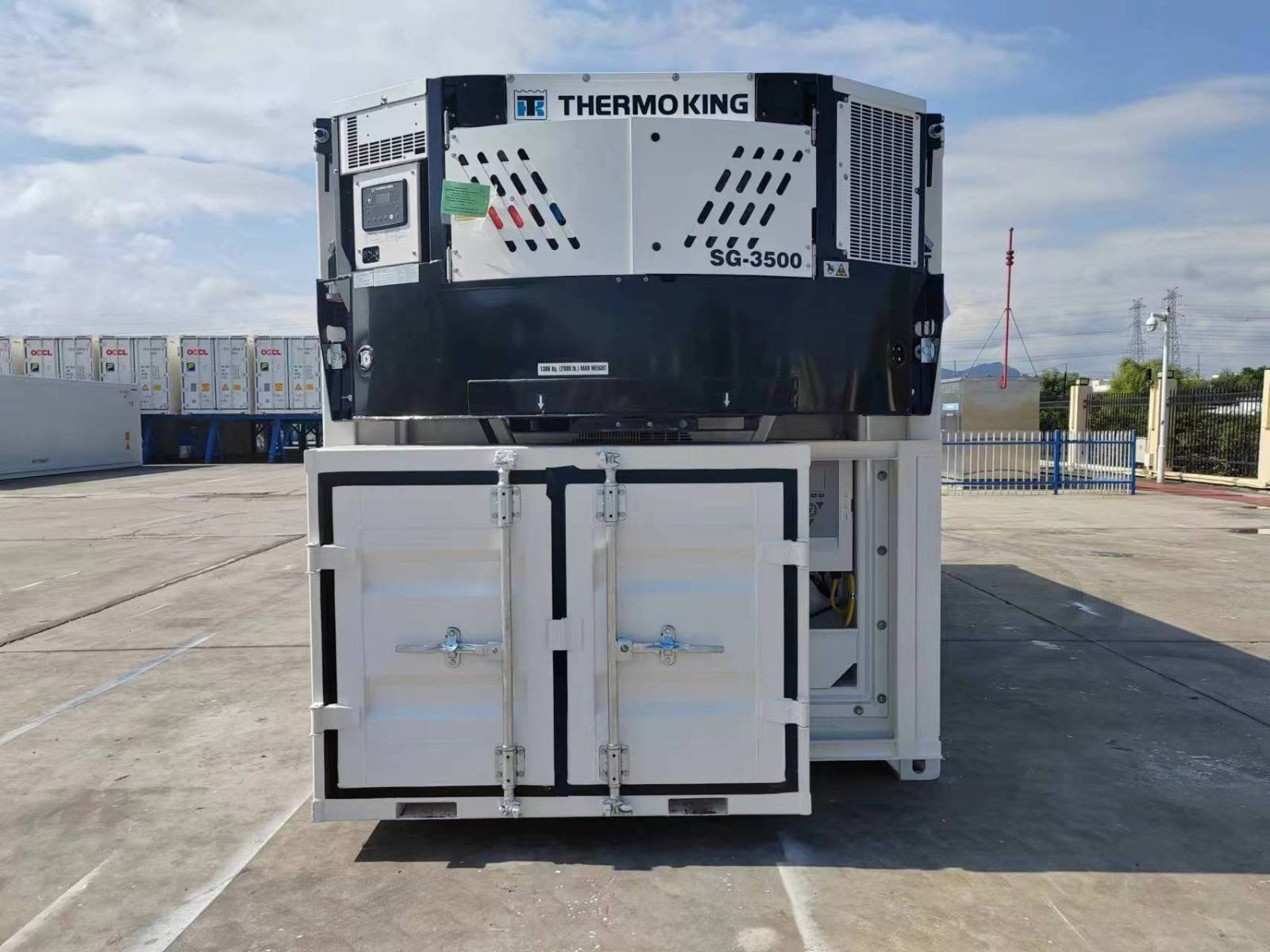

The refrigeration and auxiliary equipment is protected by a lockable, waterproof external cabin.

This dedicated equipment area helps protect important machinery from external environmental conditions while also providing controlled access to the equipment.

The arrangement separates the machinery from the main cargo area, preserving the usable temperature-controlled interior while keeping the refrigeration system accessible for operation and maintenance.

Practical Container Layout

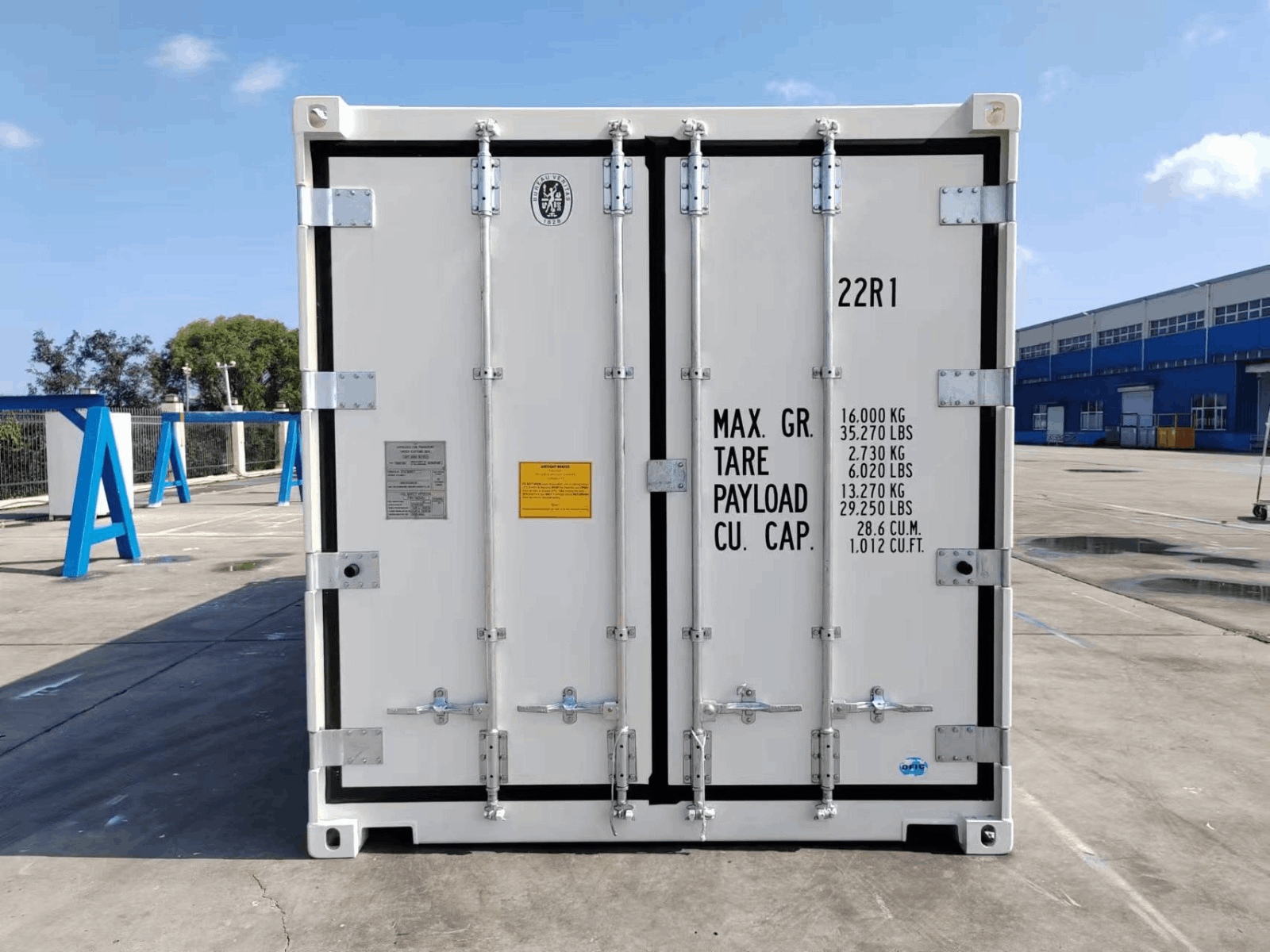

The unit features double doors at one end, providing access to the temperature-controlled cargo area.

The refrigeration machinery is positioned at the opposite end, creating a practical arrangement between the refrigerated storage area and the technical equipment.

This conventional container-style layout allows the unit to be integrated into established container handling and transportation operations.

Interior Lighting & Grounding

The container is equipped with interior lighting and light switches, making it easier to inspect and handle cargo inside the refrigerated space.

A grounding connection is also included as part of the equipment package.

These features improve the practicality of the container during loading, unloading, inspection and maintenance operations.

Technical Description & Specifications

Specification	Details
Product name	20′ Reefer, Military Grade, Electric/Diesel
Product type	Military-grade refrigerated / reefer container
Container size	20 ft
Nominal length	20 ft
Length	6,058 mm
Width	2,438 mm
Height	2,591 mm
Condition	New
Primary application	Temperature-controlled storage and transportation
Refrigeration system	Electric climate-control system
Backup power	Diesel generator
Backup activation	Automatic startup
Generator operating time	Approximately 24 hours with onboard diesel tank
Diesel tank	Integrated
Interior construction	Fully insulated temperature-controlled space
Equipment cabin	Lockable and waterproof external cabin
Cargo access	Double doors at one end
Machinery location	Refrigeration machinery at opposite end
Interior lighting	Included
Light switches	Included
Grounding	Included
Container standards	ISO 668, ISO 830, ISO 1161, ISO 1496-1, ISO 3874, ISO 6346
Certification/compliance	CSC, CCC
Quality management	ISO 9001
Welding standards	ISO 9606-1 & ISO 9606-2
Painting standard	ISO 12944
Paint options	RAL codes, categories 1–5
Military application	Designed for demanding military-grade operations
Climate suitability	Designed to fulfill operational climate requirements
Customization	Available according to specific requirements

The dimensions and standards above are those published by MC Containers for this model.

Container Dimensions

External Dimensions

• Length: 6,058 mm
• Width: 2,438 mm
• Height: 2,591 mm

The manufacturer notes an error tolerance of ±10% alongside these general dimensions.

Refrigeration & Power System

Electric Climate Control

The primary refrigeration system operates using electric power, providing the active temperature-control function required for refrigerated storage and transport.

Diesel Backup Generator

The integrated diesel generator provides an independent backup power source.

This is especially important in environments where electrical infrastructure may be unreliable, unavailable or interrupted.

Automatic Emergency Startup

The backup system is designed to start automatically when the main electrical supply is unavailable or a malfunction occurs.

This reduces the need for manual intervention and helps minimize the risk of temperature-controlled cargo being left without active refrigeration.

24-Hour Backup Operation

The integrated diesel tank is designed to provide approximately 24 hours of continuous generator operation.

The actual runtime can depend on operating conditions and generator load, so customers should confirm the expected operating profile for their particular application.

Military-Grade Construction

The container is part of MC Containers’ military-grade collection, developed for demanding operations and specialized applications.

The manufacturer states that its military-grade containers are available as modified standard shipping containers or factory-made new builds, with designs ranging from standard storage units to specialized reefer systems. The collection is intended for demanding operations and can be adapted for specific requirements.

This particular reefer is designed to combine:

• ISO-standard container construction
• Temperature-controlled storage
• Electric refrigeration
• Automatic diesel backup
• Protected refrigeration equipment
• Worldwide operational capability
• Military-grade design requirements

Standards & Certifications

The container is specified according to the following standards:

ISO Standards

• ISO 668
• ISO 830
• ISO 1161
• ISO 1496-1
• ISO 3874
• ISO 6346

Certifications / Compliance

• CSC
• CCC

Quality & Welding

• ISO 9001 – Quality Management System
• ISO 9606-1 & ISO 9606-2 – Welding qualifications

Painting

The manufacturer specifies ISO 12944 for painting and allows RAL color selections across categories 1–5.

Ideal Applications

The 20′ Military-Grade Electric/Diesel Reefer is particularly suitable for:

• Military logistics
• NATO-related operations
• Remote deployments
• Cold-chain logistics
• Food storage and transportation
• Temperature-sensitive cargo
• Industrial temperature-controlled storage
• Emergency response operations
• Humanitarian logistics
• Remote construction projects
• International refrigerated transportation
• Temporary refrigerated storage
• Operations in areas with unreliable electricity
• Specialized logistics projects

Why Choose the 20′ Military-Grade Electric/Diesel Reefer?

The main advantage of this reefer is its power redundancy.

A conventional electrically powered refrigerated container depends on a stable external power supply. This model provides an additional layer of protection by combining electric refrigeration with an automatic diesel backup generator.

If the electrical supply fails, the backup system is designed to start automatically, with the integrated diesel tank providing approximately 24 hours of generator operation.

Combined with its fully insulated interior, protected equipment cabin, ISO-standard construction, CSC/CCC compliance and military-grade design, this makes the container particularly well suited to demanding applications where temperature control and operational continuity are critical.

The unit also provides the flexibility of customization, allowing specialized requirements to be considered for particular military, industrial or logistics projects. MC Containers states that its military-grade units can be modified according to specific requirements.

A Professional Solution for Critical Temperature-Controlled Operations

Whether you need to protect temperature-sensitive goods during international transportation, establish a refrigerated facility at a remote location, support a military deployment or create a dependable cold-storage environment where electrical reliability is uncertain, the 20′ Military-Grade Reefer Container – Electric/Diesel provides a robust and flexible solution.

Choose this reefer when reliable temperature control, automatic backup power and demanding operational performance are essential to your logistics operation.
